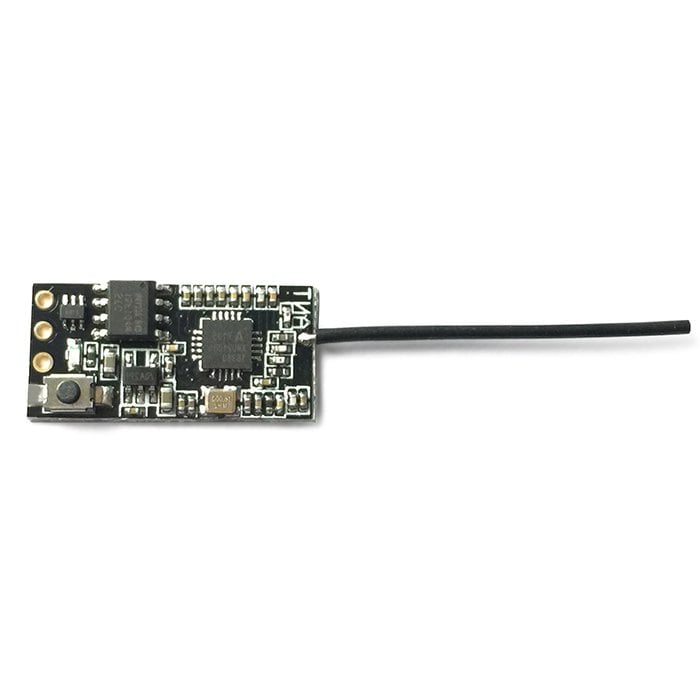

Non è un sogno! FLYSKY Tiny 2.4GHz 6CH PPM Receiver con un grande sconto del 17%!
Informazioni Principali
Specifications
Frequency 2.4GHz
Channels 6
Modulation AFHDS
Operating voltage 5V
Antenna length 30mm
Receive distance 100m
Output PPM
Size 23 x 11 x 2mm
Weight less than 1g
Compatibility
FS – I6, FS – TH9X, FS – GT2B, FS – GT3, FS – GT3B, FS – GT3C etc.
ER9X, OpenTX with FLYSKY tuner etc.
Walkera D7E, D10 with A7105 Module and etc.
How to Bind
Let’s take FS – I6 for example.
Please turn off the AFHDS 2A Mode before binding.
1. Press “Bind” and supply power for the receiver, the blue LED will flash quickly.
2. Press and hold the button, open the transmitter and wait for about 1s. The blue LED will turn on, which indicates binding successfully.
3. Cut off the power supply of the receiver and turn off the transmitter. Connect the receiver to the circuit again, and then open the transmitter.
4. If there is any signal, the blue light will flash swiftly; if there is no signal, the light will go out.
Turning off the AFHDS 2A Mode
SYSTEM – RX Setup – AFHDS – OK- AFHDS 2A – OFF – OK
